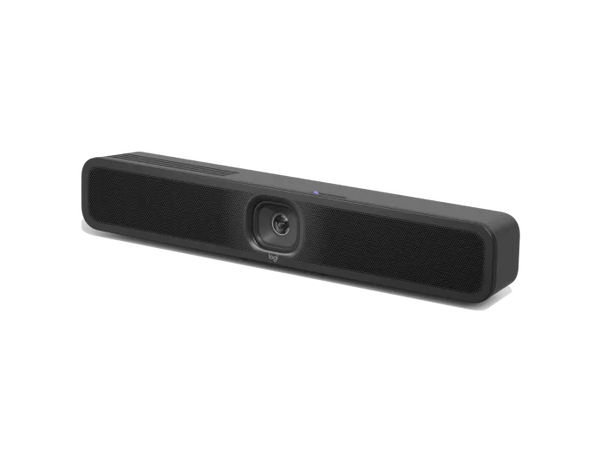

Logitech Meetup 2 Video Conferencing System - 960-001691

General Specifications

• Enclosure: All-in-one enclosure

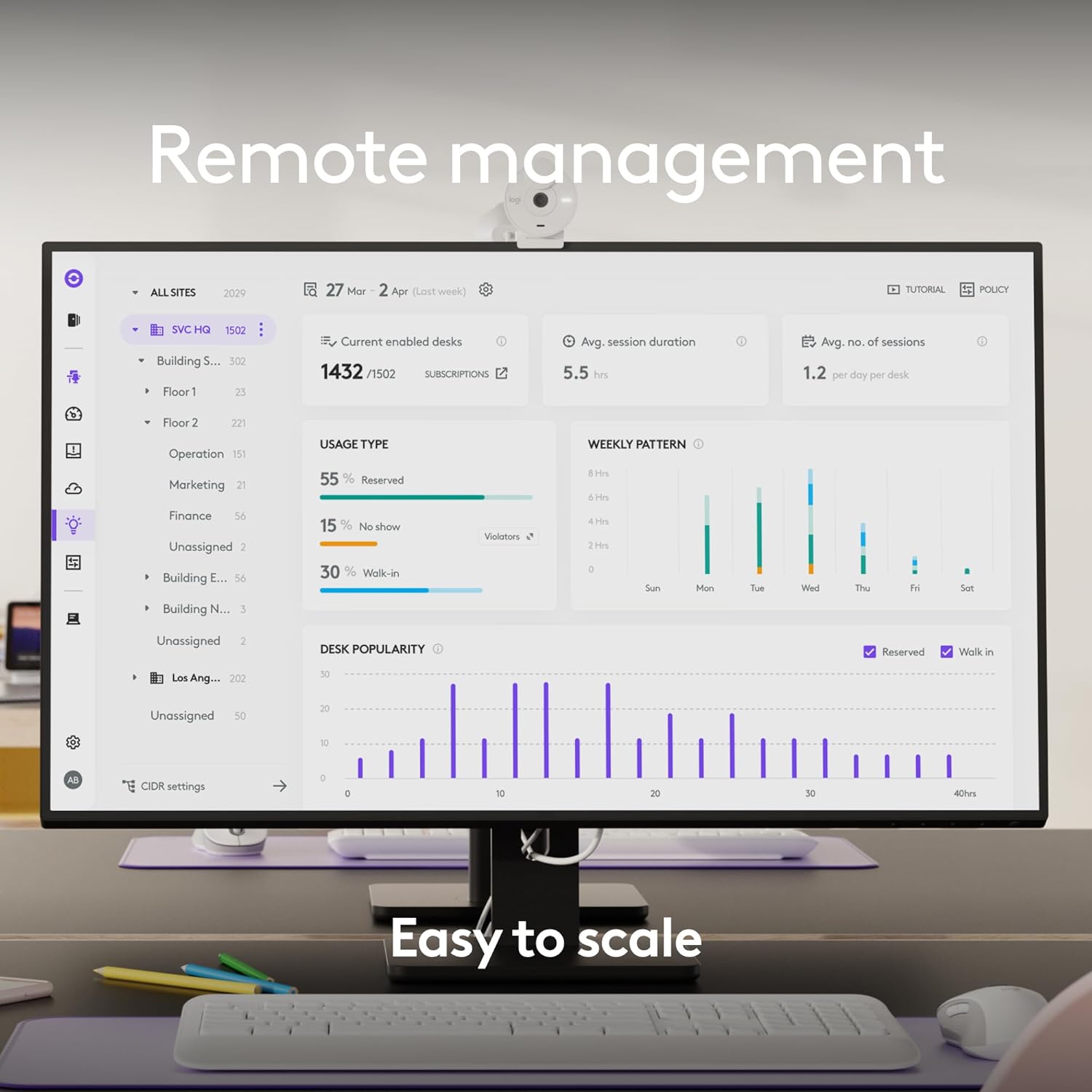

• Device Management: Logitech Sync
• Displays Supported: BYOD mode: 1; Dedicated computer mode: computer/application dependent
• Display Resolution: 1080p
• Network Protocol Support: IPv4, IPv6
• Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file

Camera

• Digital pan: ±48° at 4x zoom
• Digital Tilt: ±32° at 4x zoom
• Zoom: 4X HD digital zoom
• Diagonal Field of View: 120°
• Horizontal Field of View: 113°
• Vertical Field of View: 80°
• Resolution: 4K

Speakers

• Driver: 2.17 in (55 mm) with bass reflex enclosure and patented suspension design
• Sensitivity: 83 dB SPL @1W +/-2dB @ 1 meter
• Rated Power: 8W THD at 1W, 1kHz : <2%
• Speaker Sampling Rate: 48KHz
• Impedance: 4 Ohms

Microphones

• Frequency Response: 90Hz – 16kHz
• Sensitivity: -36dBFS +/-1 dB @ 1Pa
• Microphone data rate output: 48 kHz
• Pickup Range: Up to 23 ft (7m)
• Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
• Audio processing: AEC (Acoustic Echo Cancellation) VAD (Voice Activity Detector)
• Noise suppression: AI based de-noising algorithm

Interfaces

• HDMI Out: 1
• HDMI In: 1
• USB: 1 x Type C USB 3.1
• Network: 10/100/1G Ethernet
• WiFi: 802.11a/b/g/n/ac
• Bluetooth: Bluetooth® Low Energy

Power and Cables

• Power supply: Auto-sensing
• Operating Voltage/Power: 100-240V, 19V, 2.1A
• Power Supply Dimensions: 4.49 x 1.85in (114x 47 mm) x 32.3 mm
• DC Cable: 9.84 ft (3 m)
• USB C to USB C 3.0 Cable: 9.84 ft (3 m)

Environmental

• Operating Temperature: 0 to 40°C
• Storage Temperature: -25-70°C
• Humidity: 10 to 90%

Security

• File Based Encryption: AES-128
• Data Encryption: Symmetric Keys, PKI
• Device Identity: Protected by device attestation
• Device Access: Authenticated using API
• Key Protection: Arm TrustZone, RPMP
• Physical Security: Kensington security slot

Warranty

2-years
